Colligo Marine Products Extra Light Headsail Furling System
IMG_20191013_162314+%281%29.jpg Image 1 of 11
IMG_20191013_162643+%281%29.jpg Image 2 of 11
IMG_20191013_162549.jpg Image 3 of 11

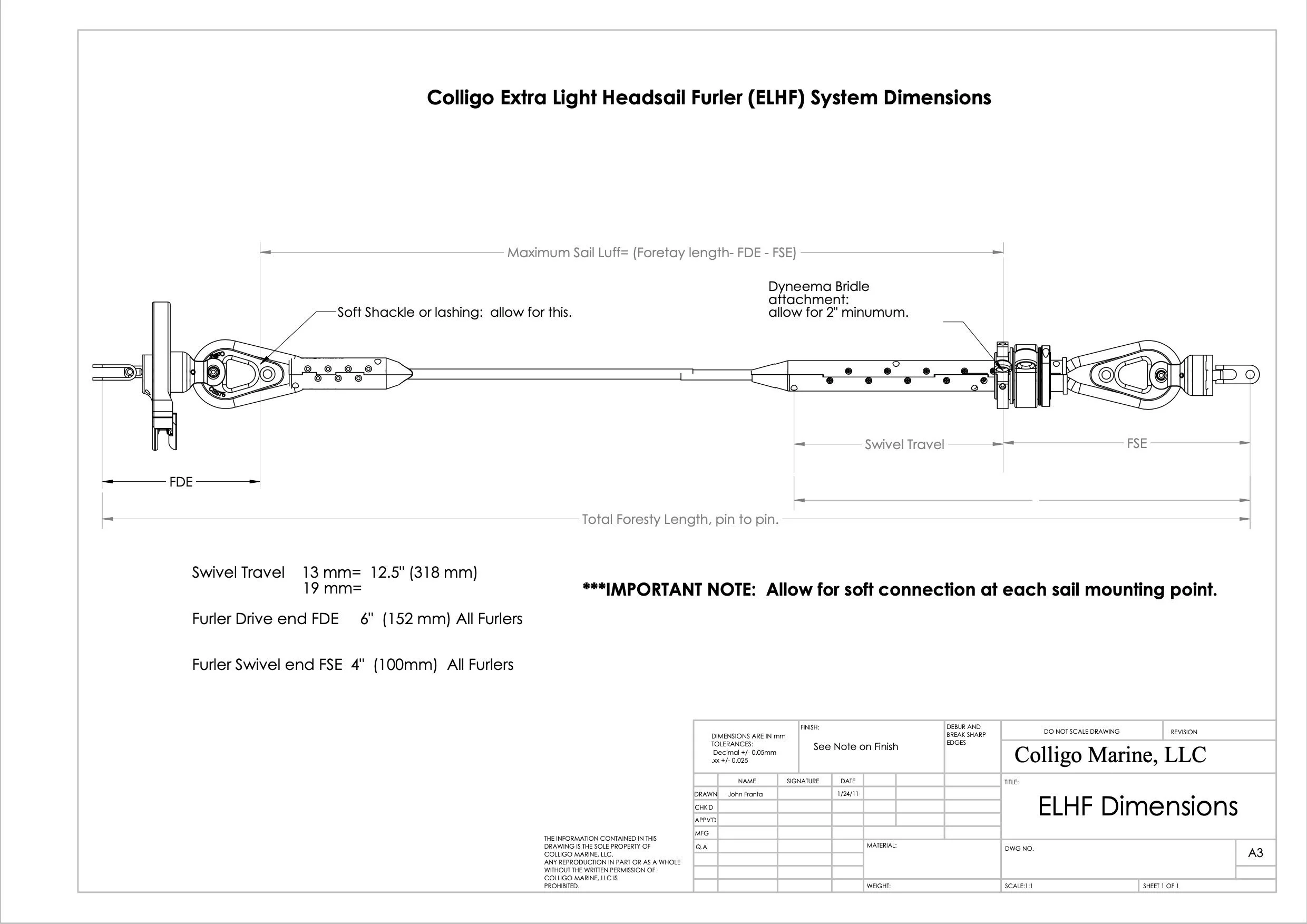

ELHF+Assembly+Dimensions.jpg Image 4 of 11

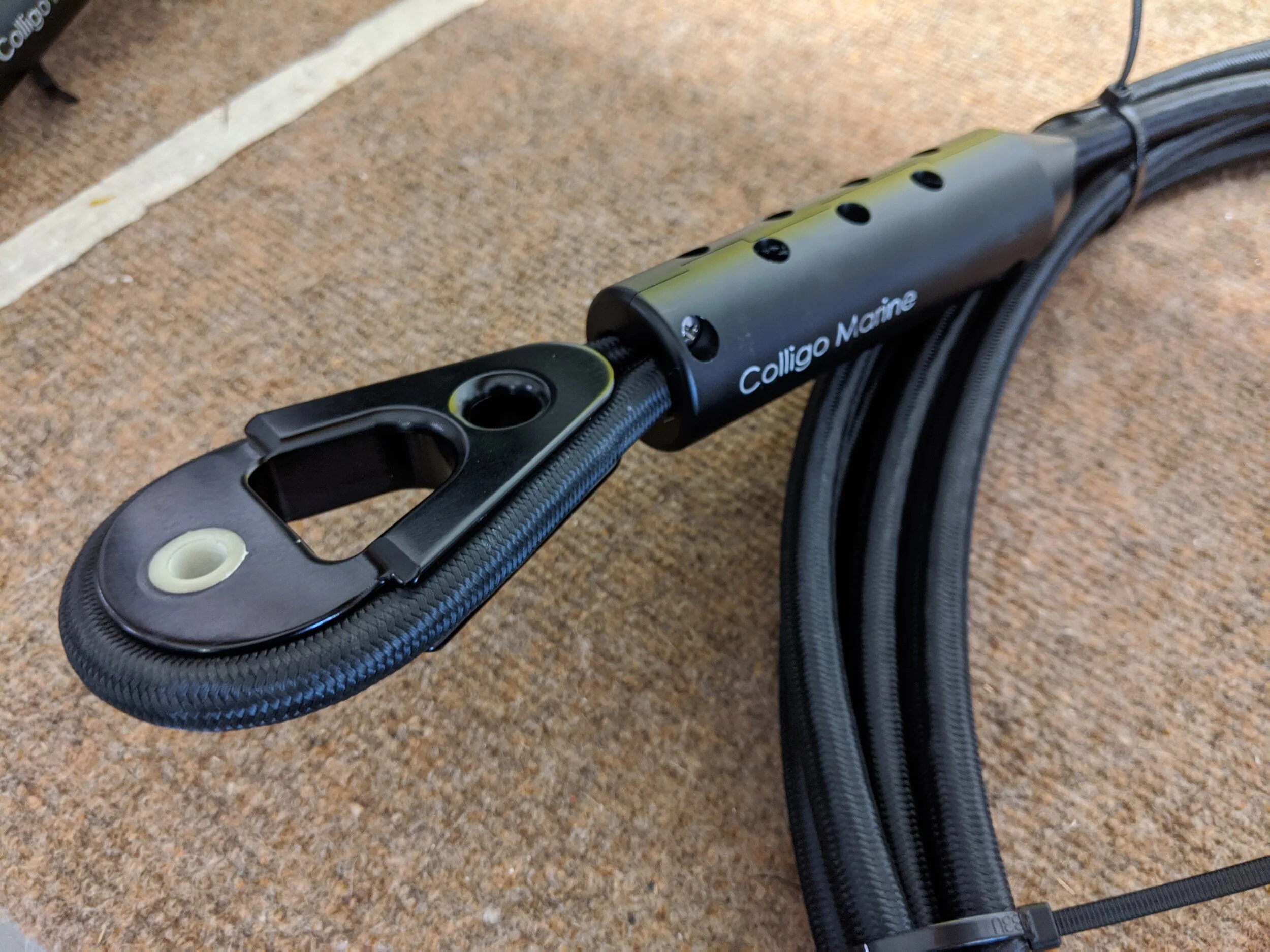

IMG_20200124_143135.jpg Image 5 of 11
IMG_20200124_143042.jpg Image 6 of 11
OneRegatta15-10.jpg Image 7 of 11
IMG_0440.JPG Image 8 of 11
CN25 single drive line version.jpg Image 9 of 11
CN25 single drive line version.jpg
CN25 continuous drive line furler.jpg Image 10 of 11
CN25 continuous drive line furler.jpg
F9R ELHF working well.jpg Image 11 of 11
F9R ELHF working well.jpg
CN25 single drive line version.jpg
CN25 continuous drive line furler.jpg
F9R ELHF working well.jpg

Extra Light Headsail Furling System

from $3,003.48

Extra light Headsail furling system for Jibs and inner forestays.  Our innovative system uses a low longitudinal stretch and torsionally stiff synthetic stay along with our clamp technology for end terminations.  The sail rolls in from both the Head and the Tack of the sail.  Great for inner forestays on cruising boats, jibs on rotating mast boats and trailerable boats.  Performance boats or Cruising boats of any style will benefit from the lightweight and low windage profile.  Uses a continuous line furler and a single drive line is available for larger systems.  This system is not reefable but sails can be changed easily and safely, even at sea.

See Vid of 2 ELHF systems on Ryan Finns Pacific Proa while Shunting

See video of upper clamp coupling here:

ELHF System Manual here

Size:
Quantity:
Add To Cart

Extra light Headsail furling system for Jibs and inner forestays.  Our innovative system uses a low longitudinal stretch and torsionally stiff synthetic stay along with our clamp technology for end terminations.  The sail rolls in from both the Head and the Tack of the sail.  Great for inner forestays on cruising boats, jibs on rotating mast boats and trailerable boats.  Performance boats or Cruising boats of any style will benefit from the lightweight and low windage profile.  Uses a continuous line furler and a single drive line is available for larger systems.  This system is not reefable but sails can be changed easily and safely, even at sea.

See Vid of 2 ELHF systems on Ryan Finns Pacific Proa while Shunting

See video of upper clamp coupling here:

ELHF System Manual here

Extra light Headsail furling system for Jibs and inner forestays.  Our innovative system uses a low longitudinal stretch and torsionally stiff synthetic stay along with our clamp technology for end terminations.  The sail rolls in from both the Head and the Tack of the sail.  Great for inner forestays on cruising boats, jibs on rotating mast boats and trailerable boats.  Performance boats or Cruising boats of any style will benefit from the lightweight and low windage profile.  Uses a continuous line furler and a single drive line is available for larger systems.  This system is not reefable but sails can be changed easily and safely, even at sea.

See Vid of 2 ELHF systems on Ryan Finns Pacific Proa while Shunting

See video of upper clamp coupling here:

ELHF System Manual here

Extra Light Headsail Furling System

  1. Lightweight and low windage.
  2. Advantages of a structural furler with the ability to lower the sail and leave the headstay intact.
  3. Uses integrated halyard system or existing, in mast halyard.
  4. Clamp system allows adjustability of headstay length.
  5. Can be used with all straight luff style of sails, Jibs, Genoas, Code sails, etc.

For luff lengths to 30 feet see our 8K-30 system. 8,000 lb breaking strength.

For luff lengths to 40 feet see our 8k-40 system. 8,000 lb breaking.

For luff lengths to 55 feet see our 20K-52 system. 20,000 lb break strength.

Terminator Documents

  • ELHF System Manual v1.1
  • Colligo ELHF 1.0 Hank On 1.1
